This AC/DC universal relay will work on 9-30VAC / DC10.5-36 VDC, and is a simple to fit module wherever a dry contact, voltage free switching is required or where there is a need for higher than usual currents and voltages to be switched. The double pole double throw relay, rated at 8 Amps, can be activated by power supply/high signal/low signal to switch two outputs at same time.

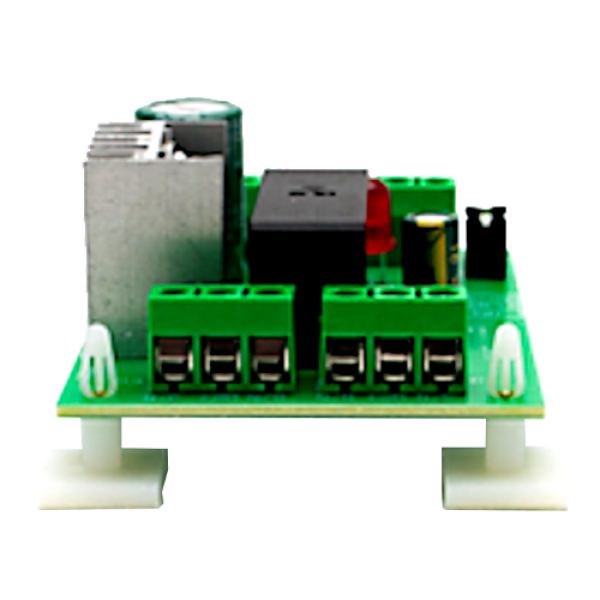

HAYDON MARKETING 12V DC Multi Purpose Relay MPRACDC-8A (L33094)
Features
- Works on AC or DC
- LED indication when relay energized
- No jumper links to select voltage
- Not polarity conscious
- Triggered by power supply high signal low signal
- Nominal Current 24 mA
Categories
- Access Control
- Accessory
- Other
- Relay
Our HAYDON MARKETING 12V DC Multi Purpose Relay from Haydon Marketing is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Specifications | |
|---|---|
| Depth | 30mm |
| Height | 30mm |
| Width | 50mm |
| Pack Quantity | 1 |
| Product Code | L33094 |
| Group Code | HAYDO_0017 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
HAYDON MARKETING 12V DC Multi Purpose Relay MPRACDC-8A
- Manufacturer: Haydon Marketing
- Product Code: L33094
-
£14.75
- Availability: 14 In Stock
