The Axim TC-8800-14 is an end load bottom pivot assembly for use with the Axim 8800 series concealed transom closer. It can be cut down to the required size using the 5mm groove line and is supplied complete with fixings to suit either floor or threshold fitting.
Axim TC-8800-14 End Load Bottom Pivot Assembly - Satin Anodised Aluminium (L33569)
Features
- Fully height adjustable 31.5mm to 58.5mm
- One full turn equals 2mm adjustment
- 100kg max radial bearing loading
- 70mm standard pivot point

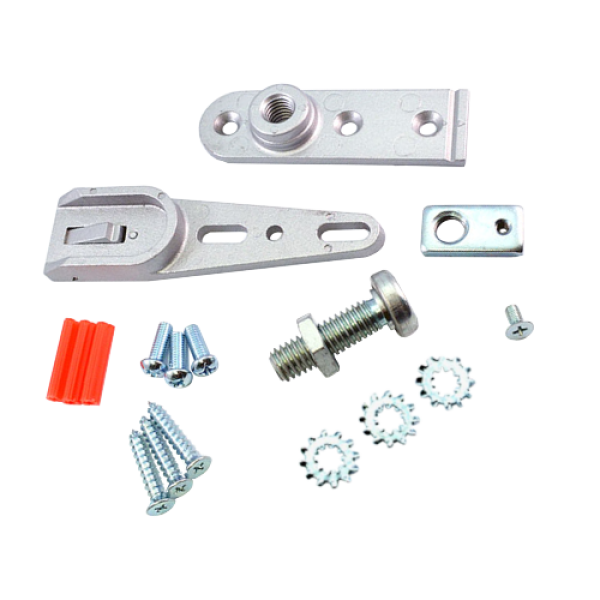

- Supplied complete with components for floor or threshold fixing
Categories
- Architectural Hardware
- Door Closer
- Transom
Our Axim TC-8800-14 End Load Bottom Pivot Assembly from Axim is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Specifications | |
|---|---|
| Finish | Satin Anodised Aluminium |
| Max Door Weight | 100Kg |
| Pack Quantity | 1 |
| Product Code | L33569 |
| Group Code | AXIM_0019 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
Axim TC-8800-14 End Load Bottom Pivot Assembly - Satin Anodised Aluminium
- Manufacturer: Axim
- Product Code: L33569
-
£18.74
- Availability: 20 In Stock
