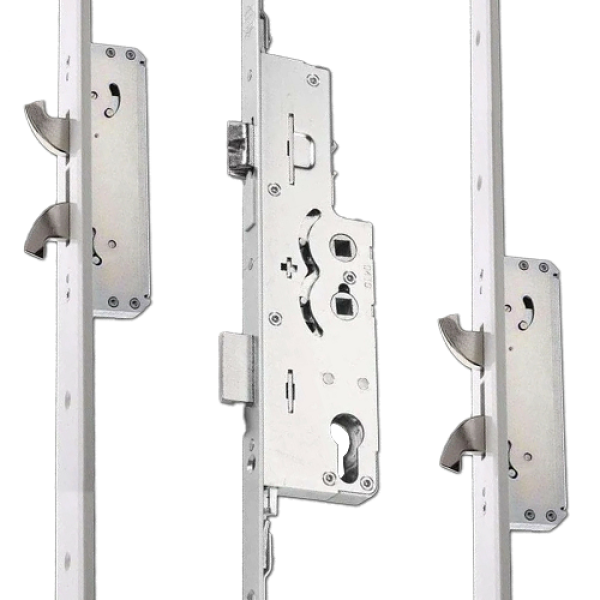

Avocet Affinity Bastion Lever Operated Latch & Deadbolt has a 20mm trivalent finish faceplate with radiused ends making it ideally suited for use on timber & composite doors. It is fitted with 4 opposing hooks for maximum resistance to lifting attack. It has twin spindles meaning that it can be used as either a straight forward lever/lever operation (using just the 92mm spindle) or as a split spindle (lever/pad) operation when using both the 92 and 62mm spindles.
There is a 16mm throw on the deadbolt, a 24mm throw on the hook bolts and the latch is both sprung loaded and reversible. This locking mechanism has been endurance tested to 100,000 operations and complies with BS EN 1670 Class 5, is tested to PAS24 and is Secured by Design accredited.
Avocet Affinity Bastion Lever Operated Latch & Deadbolt Twin Spindle - 4 Hook 35/92-62
Features
- Sprung loaded reversible latch
- Suitable for timber & composite doors
- 4 opposing hooks for maximum security
- Suitable for Lever/Lever and Lever/Pad applications
- Radius end trivalent finish faceplate
- Complies with BS EN 1670 Class 5, PAS24 approved and Secured by Design accredited
Categories
- Multi Point Locks
- Door
- Full Units
- Avocet
Our Avocet Affinity Bastion Lever Operated Latch & Deadbolt Twin Spindle - 4 Hook from Avocet is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Specifications | |
|---|---|
| Backset | 35mm |
| Bolt Throw | 16mm |
| Case Height | 220mm |
| Case Depth | 62mm |
| Centre Case | Latch & Deadbolt |
| Centres | 92mm & 62mm |
| Faceplate Width | 20mm |
| Length | 1.77m |
| Locking Point Hooks | 4 |
| Pack Quantity | 1 |
| Standards | Secured By Design |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
Avocet Affinity Bastion Lever Operated Latch & Deadbolt Twin Spindle - 4 Hook 35/92-62
- Manufacturer: Avocet
- Product Code: L31973
-
£83.08
- Availability: 5 In Stock
